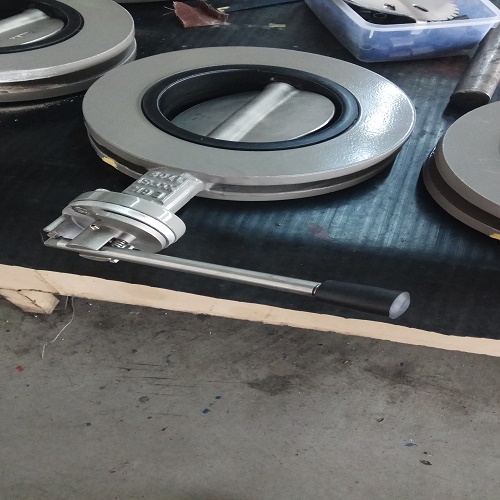

Special Flanged Butterfly Valve with handlever

Resilient seated butterfly valve is a double flanged design which can be used for dead-end service .This butterfly valve series has many of the design features and benefits such as high Cv ratings ,minimum parts exposed to the line media ,greater reliability and a proven record of long service life .A major design advantage of this valve product lines is international compatibility.


  Contact Now
Product Details

Resilient seated butterfly valve is a double flanged design which can be used for dead-end service .This butterfly valve series has many of the design features and benefits such as high Cv ratings ,minimum parts exposed to the line media ,greater reliability and a proven record of long service life .A major design advantage of this valve product lines is international compatibility.



Technical Parameters:


SizeDN32-DN600DN650-DN2000
Working pressure16Bar10Bar
Shell24Bar15Bar
Seal(Air)6Bar6Bar
Operating Temperature-40℃~+160℃
Operating EnvironmentBallast   and bilge system            Chemical processing
Desalination plants   Drilling rigs      Drinking water
Dry powder     Food and   beverage     Gas plants
HAVC  Mining industry  Paper industry      Sand handling     Seawater      Sugar industry
Thermo technical water treatment   Waste water
Driving  methodHand    Lever  Worm Gear  Electric  Pneumatic


Executive Standard:


Design   StandardEN 593 , MSS   SP67   API 609  BS5155
Inspection & TestAPI   598  ISO 5208  EN 12266
End StandardANSI   B16.1 CL. 125LB & B16.5 CL. 150LB
AS 2129 Table D & E   BS 10   Table D & E
DIN 2501 PN6, PN10 & PN16
EN 1092 PN6, PN10 & PN16
ISO 2531 PN6, PN10 & PN16
ISO 7005 PN6, PN10 & PN16
KS B 1511 / JIS B 2210 5K & 10K
MSS SP44 CL. 150LB  AWWAC207
SABS 1123 Table 1000/3 & Table 1600/3
Face to FaceISO   5752 , EN 558 , MSS SP67 and API 609  DIN3202
Top FlangeISO   5211


Main Material:

NameMaterial
BodyCast   Iron  Ductile Iron  Carbon Steel  Stainless Steel    AL-Bronze
DiscDuctile   Iron  Carbon Steel Stainless Steel  AL-Bronze
ShaftStainless   Steel  Monel K500
SeatBUNA    NBR  EPDM  VITON  PTFE  HEPDM  Neoprene    Hypalon Natural rubber
