Resilient Seated Butterfly Valve

1, the valve body is small and light, easy to install disassembly and maintenance, and can be installed in any position of the pipeline.

2, the whole valve structure is simple, and very compact, small operating torque, rotation 90 degrees can complete the opening and closing action.

3, with good flow regulation performance.

4, the sealing parts can be replaced, sealing performance is good, can achieve two-way sealing.

5, according to the needs of users on the butterfly plate spraying coating, such as nylon rubber or PTFE, etc.

6. Flange connection and clamp connection can be designed according to the requirements.

7, according to the needs of the working conditions, the soft seal butterfly valve can be used manual, electric or pneumatic drive.

  Contact Now
Product Details

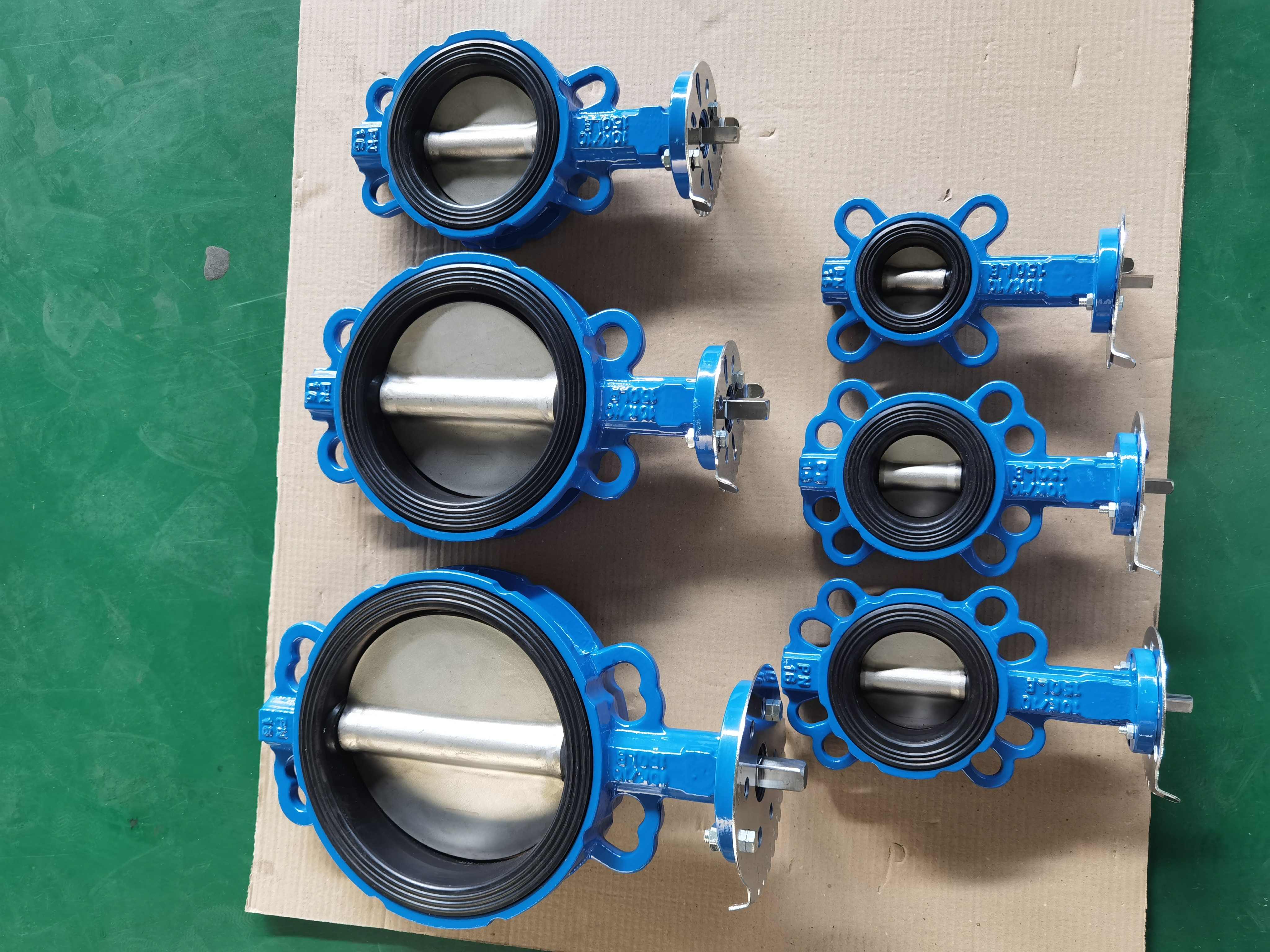

groove seat butterfly valve1(2).jpg


Size:

DN25-DN1200

Material:

Body:Cast Iron/Ductile Iron/Cast Steel

Disc:DI+Ni/SS304/SS316/AL-BZ/CF3M/SS2205/SS2507

Stem:SS416/SS304/SS316/17-PH/Monel K500

Seat:EPDM/NBR/VITON/PTFE/HYPALON

Operation:Handlever /Gearbox/Electric / Pneumatic

Standard:

Design Standard:EN 593 , MSS SP67 API 609 BS5155

Inspection & Test:API 598 ISO 5208 EN 12266

End Standard:ANSI B16.1 CL. 125LB /B16.5 CL. 150LB /AS 2129 Table D & E / DIN 2501 PN6, PN10 & PN16

/EN 1092 PN6, PN10 & PN16/ISO 2531 PN6, PN10 & PN16/ISO 7005 PN6, PN10 & PN16 / JIS B 2210 5K & 10K

Face to Face:ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202

Top Flange:ISO 5211



Product form
