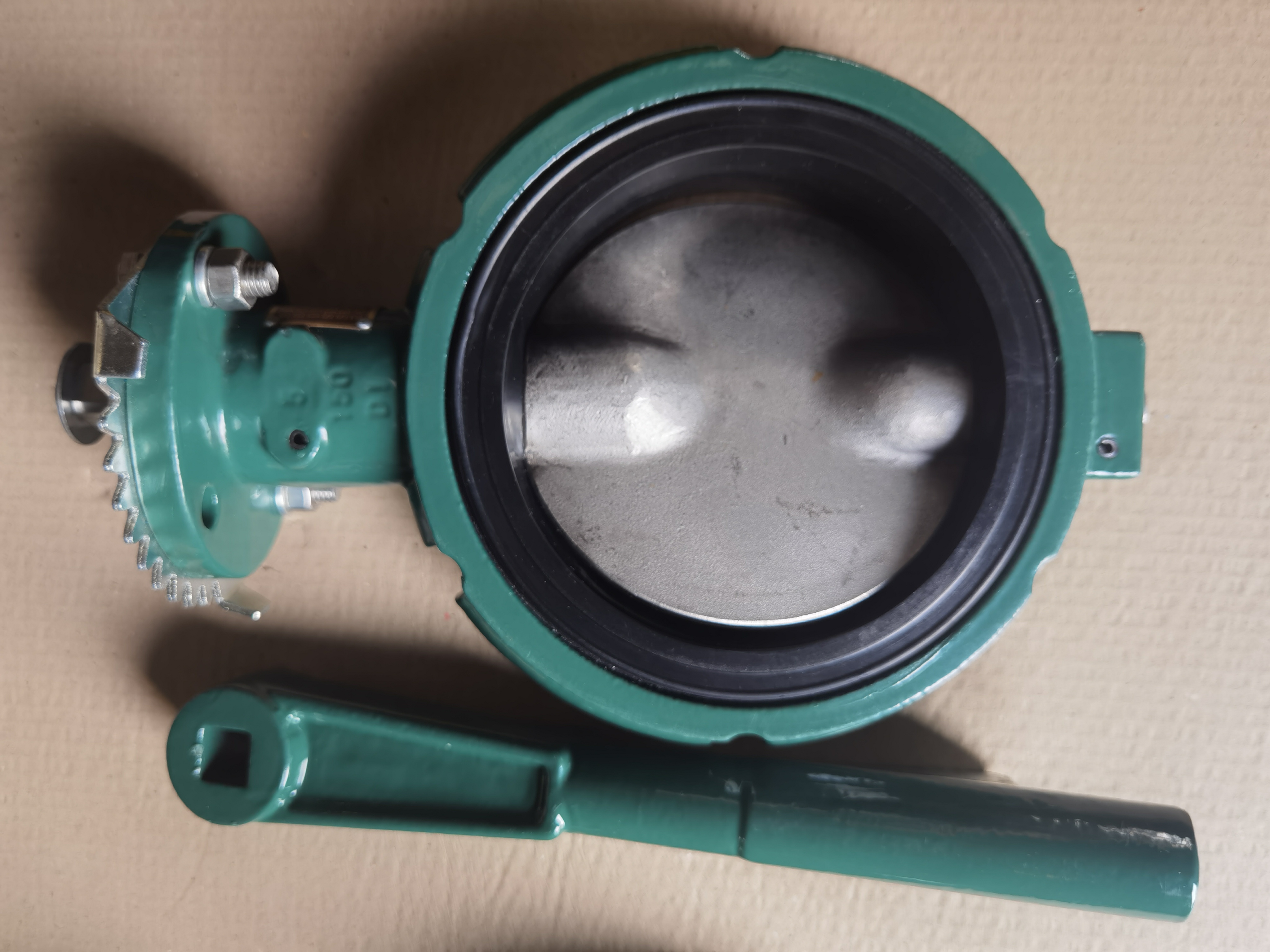

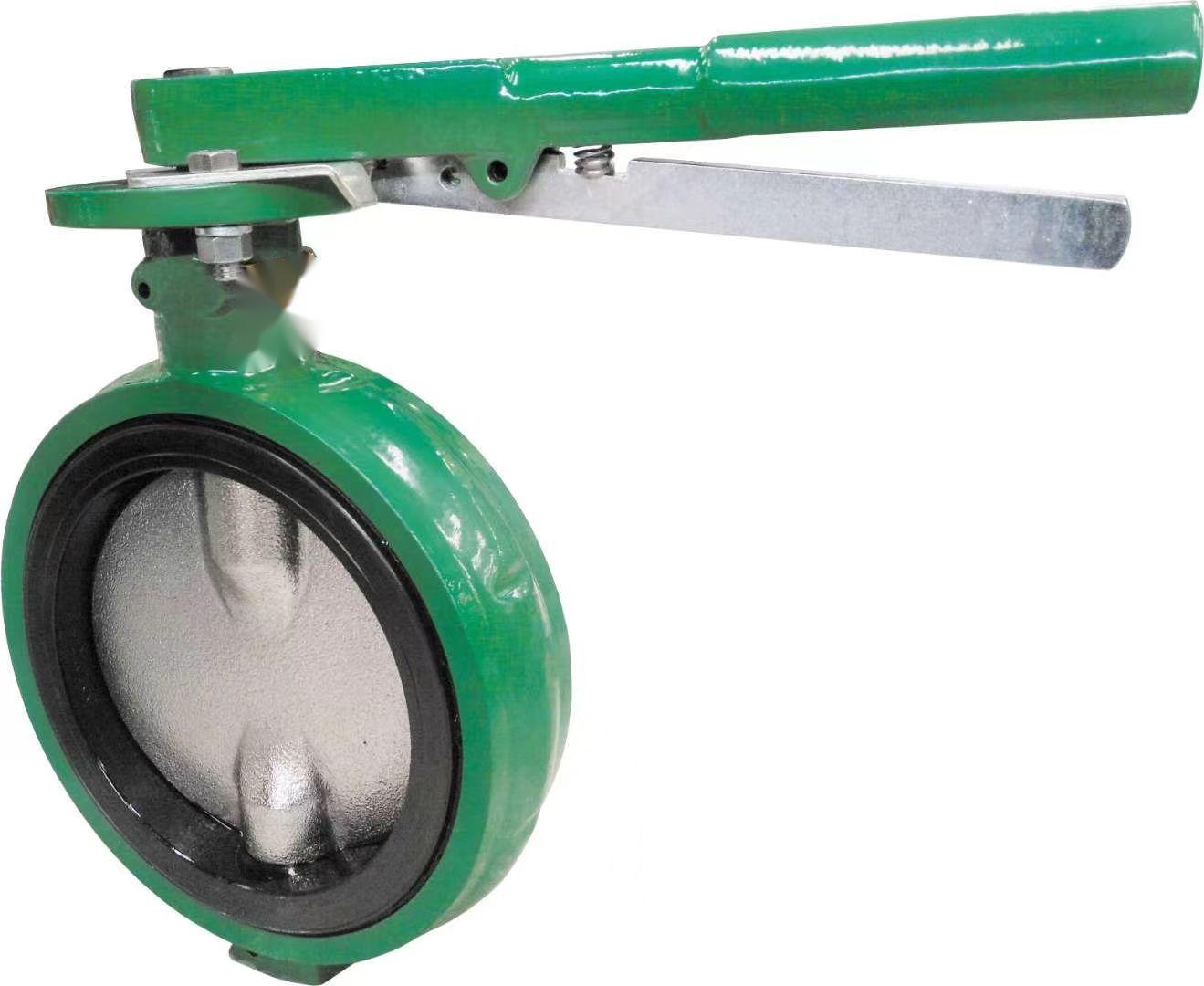

Short Neck Butterfly Valve

1,The valve body is small and light, easy to install disassembly and maintenance, and can be installed in any position of the pipeline.

2,The whole valve structure is simple, and very compact, small operating torque, rotation 90 degrees can complete the opening and closing action.

3, With good flow regulation performance.

4,The sealing parts can be replaced, sealing performance is good, can achieve two-way sealing.

5, According to the needs of users on the butterfly plate spraying coating, such as nylon rubber or PTFE, etc.

6. Flange connection and clamp connection can be designed according to the requirements.

7, According to the needs of the working conditions, the soft seal butterfly valve can be used manual, electric or pneumatic drive.

  Contact Now
Product Details




ANSI Class: Class 125/Class 150

Features: Short Neck,Two shaft/Pinless Type/ Notched Body


Body: Cast Iron A126/ Ductile iron ASTM A536

Disc: Ductile Iron (Ni Plated),Ductile Iron (Nylon Coated),Aluminum Bronze,CF8M / SS316

Seat: E.P.D.M, BUNA-N,F.K.M./VITON, P.T.F.E (Teflon)

Stem: Stainless Steel 416/ Stainless Steel 304

Stem Style:Doubel D / Square Shaft

Operator: Lever/ Gear / Actuator

Product form
