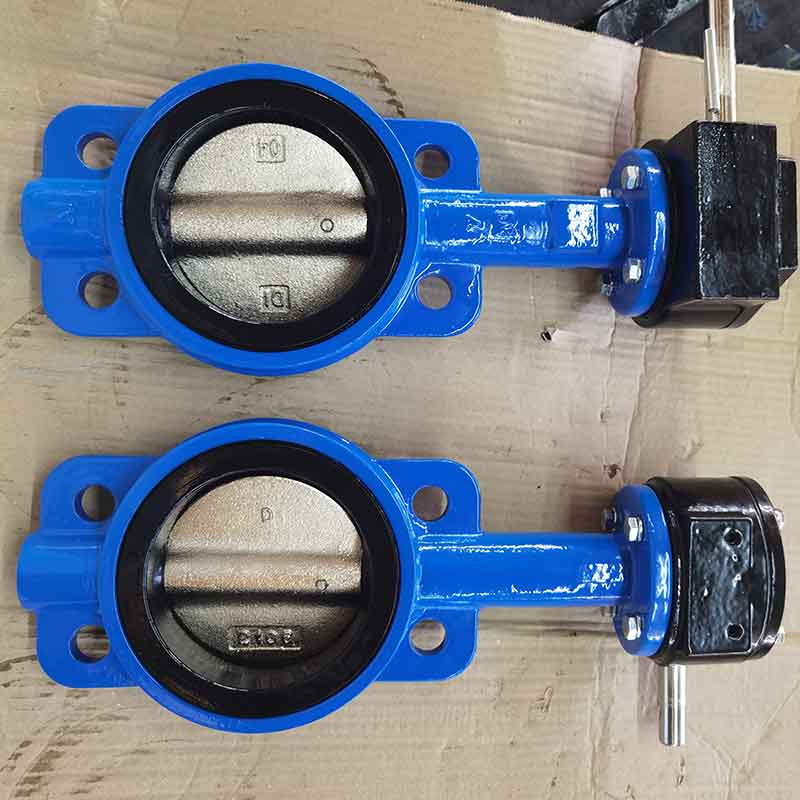

Gear operator Wafer Type Butterfly Valve

Wide selection of materials, applicable for various medium.

Small in size and light in weight, easy installation and maintenance.It can be mounted wherever needed.

Simple and compact construction,

Flow block is small.Excellent regulation performance.

Minimized operating torque, energy saving.


  Contact Now
Product Details

Standard:

Design Standard:EN 593 , MSS SP67   API 609  BS5155

Inspection & Test:API 598  ISO 5208  EN 12266

End Standard:ANSI B16.1 CL. 125LB /B16.5 CL. 150LB /AS 2129 Table D & E / DIN 2501 PN6, PN10 & PN16

/EN 1092 PN6, PN10 & PN16/ISO 2531 PN6, PN10 & PN16/ISO 7005 PN6, PN10 & PN16 / JIS B 2210 5K & 10K

 Wafer Type Butterfly Valve Manual.jpg

Size:

DN25-DN1200



Material:

Body:Cast Iron/Ductile Iron/Cast Steel

Disc:DI+Ni/SS304/SS316/AL-BZ/CF3M/SS2205/SS2507

Stem:SS416/SS304/SS316/17-PH/Monel K500

Seat:EPDM/NBR/VITON/PTFE/HYPALON

Operation:Handlever /Gearbox/Electric / Pneumatic



Face to Face:ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202



Top Flange:ISO 5211


Product form
