DF714 Lug Type Butterfly Valve

Wide selection of materials, applicable for various medium.

Small in size and light in weight, easy installation and maintenance.It can be mounted wherever needed.

Simple and compact construction,

Flow block is small.Excellent regulation performance.

Minimized operating torque, energy saving.

It can be used for dead-end.


  Contact Now
Product Details

Wide selection of materials, applicable for diverse medium.


Small in size and mild in weight, easy set up and maintenance.it may be established anyplace wanted.


Easy and compact production,


Drift block is small.notable regulation overall performance.

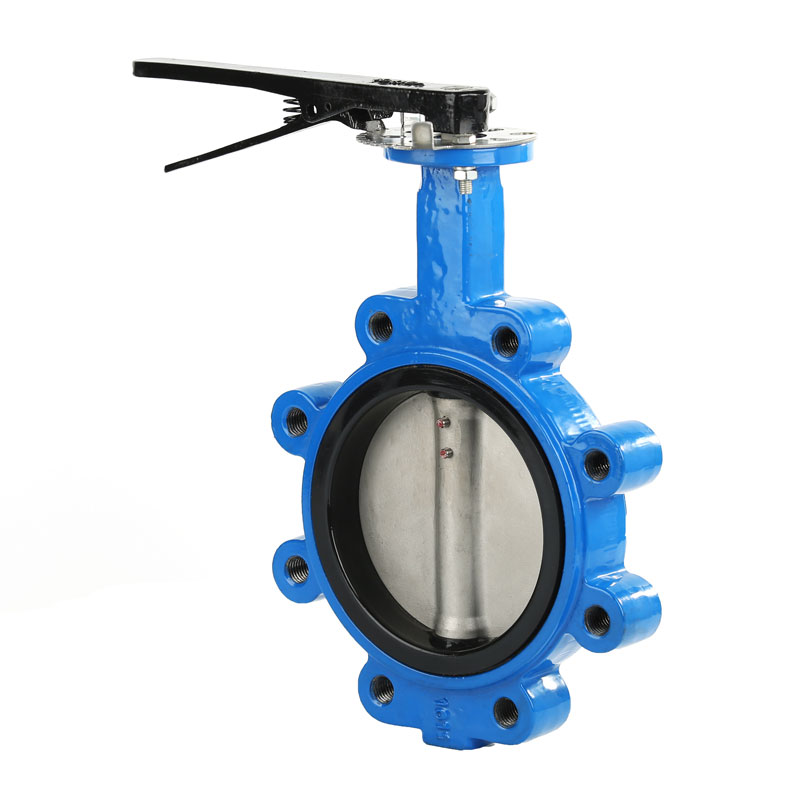

Lug Type Butterfly Valve Aluminum.jpg


Size:

DN25-DN1200



Material:

Body:Cast Iron/Ductile Iron/Cast Steel

Disc:DI+Ni/SS304/SS316/AL-BZ/CF3M/SS2205/SS2507

Stem:SS416/SS304/SS316/17-PH/Monel K500

Seat:EPDM/NBR/VITON/PTFE/HYPALON

Operation:Handlever /Gearbox/Electric / Pneumatic



Standard:

Design Standard:EN 593 , MSS SP67   API 609  BS5155

Inspection & Test:API 598  ISO 5208  EN 12266

End Standard:ANSI B16.1 CL. 125LB /B16.5 CL. 150LB /AS 2129 Table D & E / DIN 2501 PN6, PN10 & PN16

/EN 1092 PN6, PN10 & PN16/ISO 2531 PN6, PN10 & PN16/ISO 7005 PN6, PN10 & PN16/KS B 1511 / JIS B 2210 5K & 10K



Face to Face:ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202



Top Flange:ISO 5211
